The eone-sixty is the headline grabber of the merida ebike range; for 3 generations it's been winning tests, gathering accolades and generally hogging the limelight!
The eone-sixty is the headline grabber of the merida ebike range; for 3 generations it's been winning tests, gathering accolades and generally hogging the limelight!
Merida

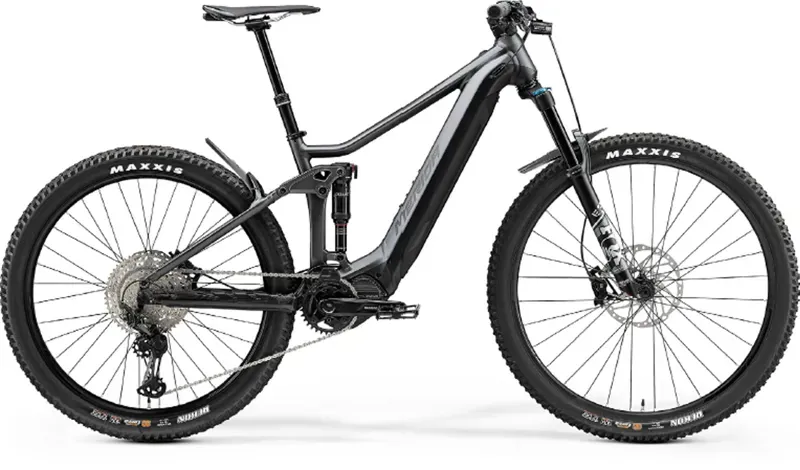

2022 Merida eOne-Forty 400 MY22 Electric Bike in Grey

£4,150.00
Size Guide
Pre-Order

With Pre-Order, you can purchase the latest items added to our store in advance of them arriving with us.

Your Pre-Order is prioritised (at no additional charge); meaning that as soon as the product arrives with us, we can wrap it straight back up; ready for collection via Click & Collect or despatch to you — it often never even hits the stock room shelves!

Pre-Launch

With Pre-Launch, the date when we expect to receive the product ourselves is still a little too hazy to be confident in accepting Pre-Orders.

So, instead, you can submit your email address against the item you are interested in and we will email you as soon as stock arrives on the system.

Estimated Delivery & Collection Dates

Estimated Delivery & Collection Dates are given on Pre-Order and Pre-Launch products. They are for indication purposes only and can change at any time without notice.

The dates we provide are based on indications given by our suppliers. Whenever we get updated information from our suppliers we will endeavour to update the Estimated Delivery & Collection Dates provided on product pages.

We estimate this will be ready for despatch to you or collection via Click & Collect on Undetermined

2022 Merida eOne-Forty 400 MY22 Electric Bike in Grey

Season:2023

Brand:Merida

Code:P-N819

The eone-sixty is the headline grabber of the merida ebike range; for 3 generations it's been winning tests, gathering accolades and generally hogging the limelight!

The eone-forty shares exactly the same frame and design features but has different ride characteristics.The shock stroke on the eone-forty is shorter, reducing rear travel to 133mm and creating a steeper seat angle. The shorter 140mm fork extends the reach, delivering a slightly steeper head angle.

In combination these small changes make the eone-forty more agile and playful; a highly competent climber that's perfect for all day riding.The mixed wheel size set up is carried over, to give the e-full suspension bikes precise steering, fantastic rolling over obstacles behaviour yet maximum traction, a 29er front wheel with a 2.5 tyre is combined with a 650b rear wheel, equipped with a slightly wider 2.6 tyre.

The perfect combination of precision, playfulness and traction.All eone-forty models use the powerful Shimano ep8 85nm motor and bigger 630wh battery (with the exception of frame size - s which uses 504wh).Shimano'S e-tube app allows you to tailor power delivery to suit your riding style; you can set two profiles; one for shredding and one for cruising
Technical Information
  • Frame
    Lite III - Hydroformed 6061 double butted aluminium with intergrated battery. Internal cable routing via Smart entry ports. Tapered head tube, 148 x 12mm axle standard. Max. tyre size 27.5 x 2.8.
  • Rear Shock
    Suntour RS-Edge-TR-LO-R8-M6; lockout
  • Fork
    Suntour XCR34 LOR DS; Air; Boost; 140mm; Tapered; 51mm fork offset; Max. tyre size: 29 x 2.4
  • Headset
    Merida-8152
  • Stem
    Merida Expert eTRII; aluminium; 35mm diameter; 0 degree rise - Stem length: 50mm (all sizes). GoPro & Supernova mount point.
  • Handlebar
    Merida Expert eTR; 780mm wide; 20mm rise
  • Grip
    Merida Expert EC
  • Brake Type
    Hydraulic disc
  • Brake Lever
    Shimano M4100
  • Brake Calipers
    Front: Shimano M42040; 4 piston hydraulic disc brake caliper with Shimano RT30; 203 mm rotor Rear: Shimano M4100; 2 piston hydraulic disc brake caliper with Shimano RTEM300; 180 mm rotor
  • Tyres
    Front: Maxxis Rekon; 29 x 2.4; Dual; wire bead Rear: Maxxis Rekon; 27.5 x 2.6; EXO; wire bead
  • Wheel Size
    29 / 27.5
  • Wheels
    Rims: Merida Comp TR; 29mm inner rim width; Aluminium Spokes: Black stainless Front Hub: Shimano MT400-B; 110x15mm; 32 spokes; Center lock Rear Hub: Shimano MT400-B; 148x12mm; 36 spokes; Center lock; including removable lever with 4/6mm Allen key
  • Speeds
    10
  • Rear Derailleur
    Shimano Deore RDM5120 10
  • Shift Levers
    Shimano Deore M4100 with Shimano SL -MT500-IL lever
  • Chain
    KMC e10s
  • Cassette
    Shimano M4100; 11-46 teeth; 10 speed
  • Chainset
    Shimano CRE70-B; 34 tooth chainring with Shimano FCEM600; 165mm length crank
  • Bottom Bracket
    Part of Shimano Steps motor
  • Pedals
    VP Components, VPE-537
  • Saddle
    Merida Comp SL; V-mount
  • Seat Post
    Merida Comp TR; 30.9mm diameter; in-line; Drop: 100mm (S), 125mm (M/L), 150mm (XL/XXL)
  • Motor
    Shimano E8036; 630Wh internal battery, Shimano Steps EP8; 85Nm
  • Battery Capacity
    630 Wh
  • eBike Display
    Shimano SC-E5003A
