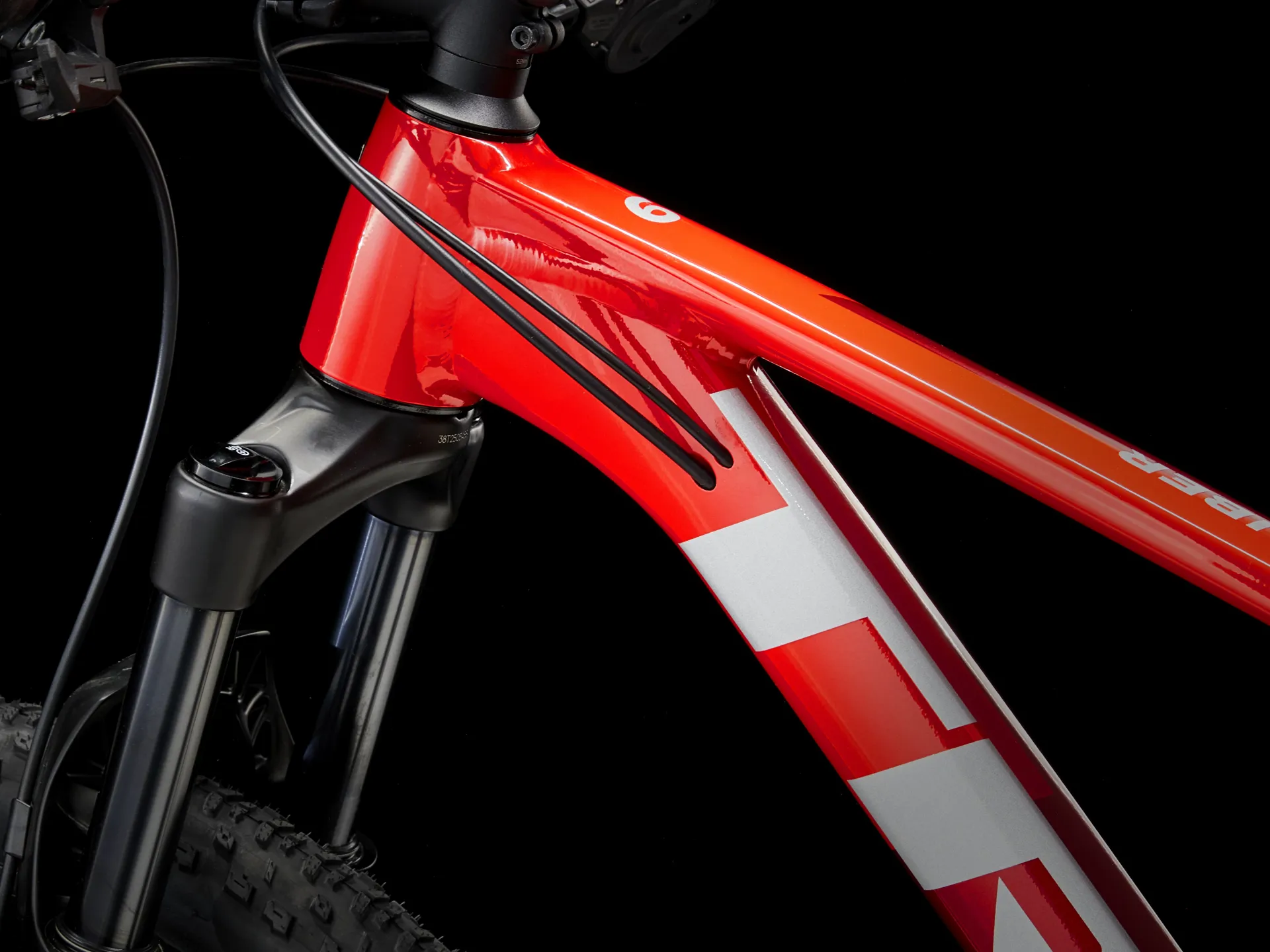

Frame
Alpha Platinum Aluminium, tapered head tube, internal routing, BSA 73, hidden rack and kickstand mounts, UDH, Boost148, 12 mm thru axle
Fork
RockShox Judy Silver, Solo Air spring, TurnKey lockout, tapered steerer, 42mm offset, Boost110, 15 mm Maxle Stealth, 120 mm travel
Max compatible fork travel
130 mm (540 mm axle-to-crown)
Hub front
Shimano TC500 alloy, CentreLock, 110x15 mm thru axle
Hub rear
Shimano TC500 alloy, CentreLock, 148x12 mm thru axle
Rim
Bontrager Kovee, double-wall, Tubeless-Ready, 28-hole, 23 mm width, Presta valve

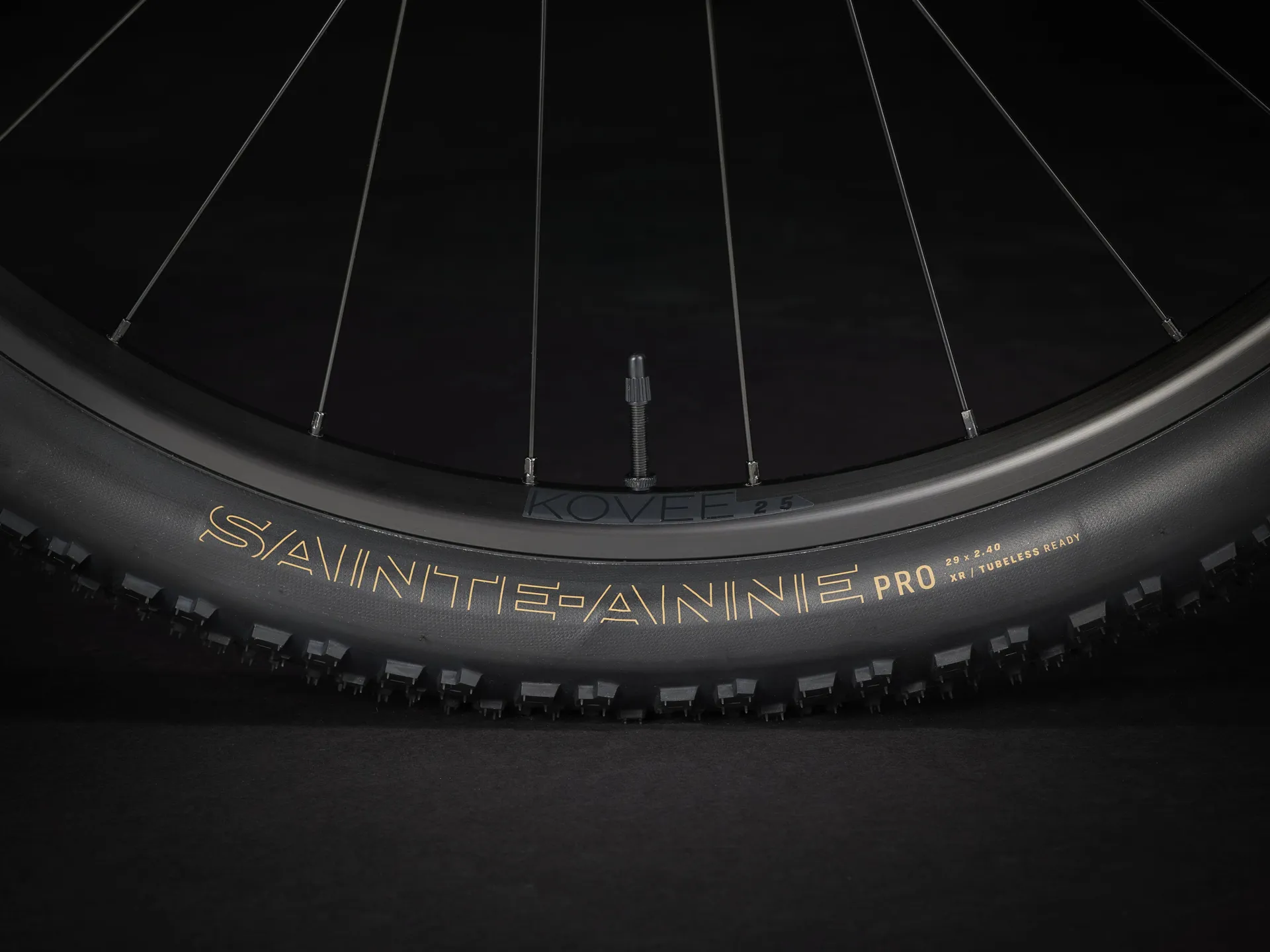

Tyre
Bontrager Sainte-Anne Pro XR, Tubeless Ready, dual compound, aramid bead, 60 tpi, 29x2.20"
Tyre part
Bontrager TLR sealant, 180 ml/6 oz
Rim strip
Bontrager TLR
Max tyre size
Frame: 29x2.40", Fork: See manufacturer
Shifter
Shimano Deore M6100, 12-speed

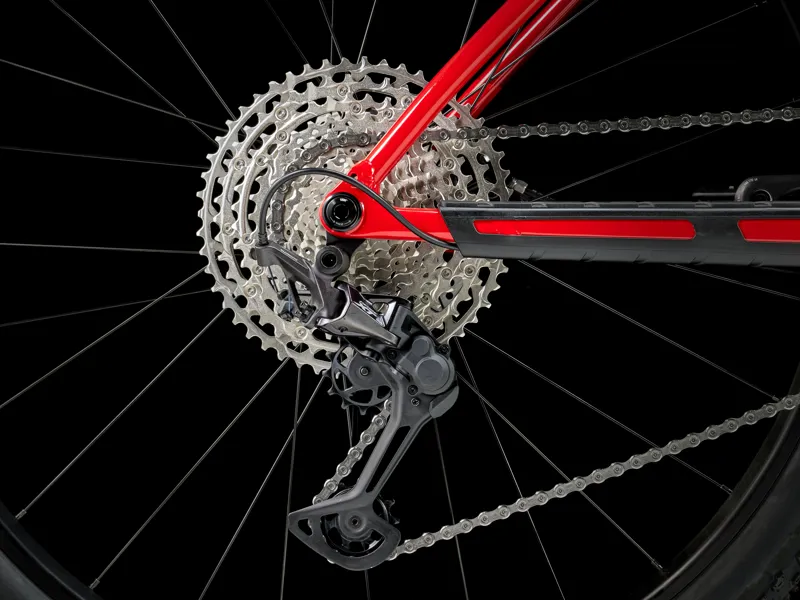

Rear derailleur
Shimano XT M8100, long cage

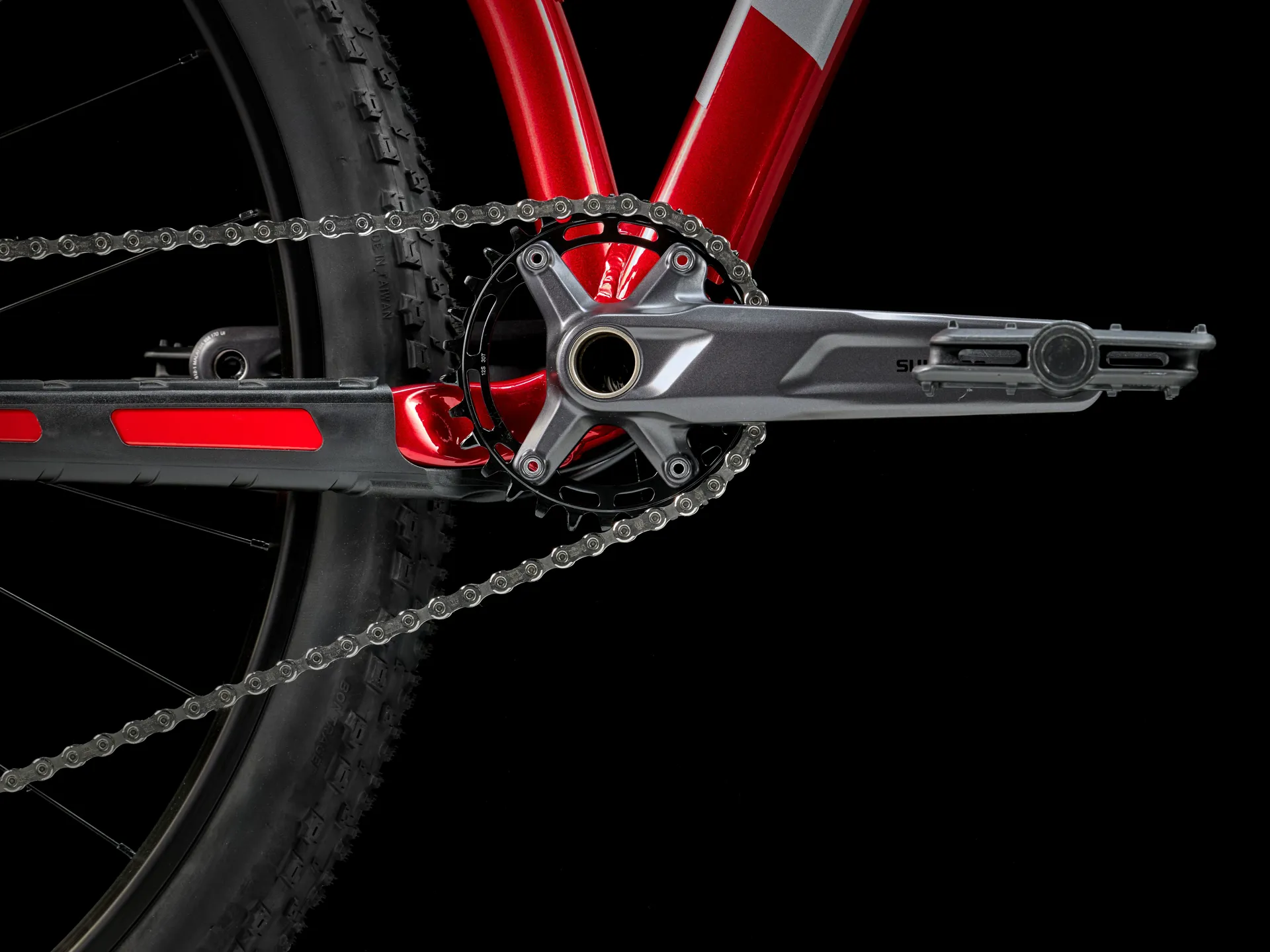

*Crank
Size: S, M
Shimano MT512, 30T ring, 55 mm chain line, 170 mm length
Size: M/L, L, XL
Shimano MT512, 30T ring, 55 mm chain line, 175 mm length
Bottom bracket
Shimano BB-MT501 BSA
Cassette
Shimano Deore M6100, 10-51, 12-speed
Chain
Shimano Deore M6100, 12-speed
Pedal
VP-536 nylon platform
Max. chainring size
1x: 34T (55 mm chain line), min 30T (52 mm chain line)
Saddle
Verse Short, steel rails, 145 mm width
*Seatpost
Size: S, M
Bontrager Line Dropper, 100mm travel, MaxFlow, internal routing, 31.6 mm, 310 mm length
Size: M/L, L
Bontrager Line Dropper, 150mm travel, MaxFlow, internal routing, 31.6 mm, 410 mm length
Size: XL
Bontrager Line Dropper, 170 mm travel, MaxFlow, internal routing, 31.6 mm, 450 mm length
*Handlebar
Size: S, M
Bontrager alloy, 31.8 mm, 5 mm rise, 720 mm width
Size: M/L, L, XL
Bontrager alloy, 31.8 mm, 15 mm rise, 750 mm width
Grips
Bontrager XR Trail Comp, nylon lock-on
*Stem
Size: S
Bontrager alloy, 31.8 mm, Blendr-compatible, 7-degree, 50 mm length
Size: M, M/L
Bontrager Elite, 31.8 mm, Blendr-compatible, 7-degree, 60 mm length
Size: L
Bontrager Elite, 31.8 mm, Blendr-compatible, 7-degree, 70 mm length
Size: XL
Bontrager Elite, 31.8 mm, Blendr-compatible, 7-degree, 80 mm length
Head set
Semi-integrated, loose ball bearing, 1-1/8" top, 1.5" bottom
Brake
Shimano MT200 hydraulic disc
*Brake rotor
Size: S, M, M/L, L, XL
Shimano RT10, CenterLock, 160 mm
Size: L, XL
Shimano RT10, CenterLock, 180 mm
Brake Set
Shimano MT200 hydraulic disc
Rotor size
Max brake rotor sizes – Frame: 180 mm, Fork: see fork manufacturer
Weight limit
This bike has a maximum total weight limit (combined weight of bicycle, rider and cargo) of 136 kg (300 lb).
