Wheel Size Front
27.5
Wheel Size Rear
27.5
Frame Type
UNI
Frame Size
39
Frame Size Supplier
S
Frame Material
CARBON
Frame Description
OCLV Mountain Carbon, high main pivot, idler pulley, internal storage, angle-adjust headset, Mino Link adjustable geometry, adjustable leverage rate, integrated frame protection, internal routing, magnesium rocker link, ISCG 05, Active Braking Pivot, UDH, 148x12 mm thru axle, 170 mm travel
Seat Tube Length
39
Seat Tube Angle
74
Chainstay Length
42.9
Head Angle
63.5
Head Tube Length
10
Toptube Length
54.8
Bottom Bracket Height
35.2
Bottom Bracket Drop
1
Frame Reach
43
Frame Stack
58.8
Wheelbase
119.5
Stand Over Height
72.7
Trail
13.2
Offset
4.3
Gear Brand
SHIMANO
Gear Model
Shimano XT M8100, long cage
Gear Type
DERAILLEUR
Number Of Gears
1
Primary Rear Brake Model
Shimano XT M8120 4-piston hydraulic disc // Shimano XT M8120 4-piston hydraulic disc, Shimano RT86, 6-bolt, 203mm
Front Brake Model
Shimano XT M8120 4-piston hydraulic disc // Shimano XT M8120 4-piston hydraulic disc, Shimano RT86, 6-bolt, 203mm
Fork Model
RockShox ZEB Select+, DebonAir spring, Charger 3 RC2 damper, tapered steerer, 44mm offset, Boost110, Maxle Stealth, 170mm travel
Derailleur Rear Model
Shimano XT M8100, long cage
Crankset Model
Shimano XT M8120, 30T alloy ring, Boost (55 mm chain line), 165 mm length, Shimano BB-MT501 BSA
Shifters Model
Shimano XT M8100, 12-speed
Chain Model
Shimano Ultegra/XT M8100, 12-speed
Cassette Model
Shimano XT M8100, 10-51, 12-speed
Stem Model
Bontrager Line Pro, 35 mm, Knock Block, Blendr-compatible, 0-degree, 35 mm length
Handlebar Model
Bontrager Line Pro, OCLV Carbon, 35 mm, 27.5 mm rise, 820 mm width
Headset Model
Integrated cartridge bearing, 1-1/8" top, 1.5" bottom, angle adjust cup compatible
Bartape Or Grips Model
Bontrager XR Trail Pro, alloy lock-on
Seatpost Model
Bontrager Line Elite Dropper, 100mm travel, MaxFlow, internal routing, 34.9mm, 345mm length
Saddle Model
Bontrager Arvada, austenite rails, 138 mm width

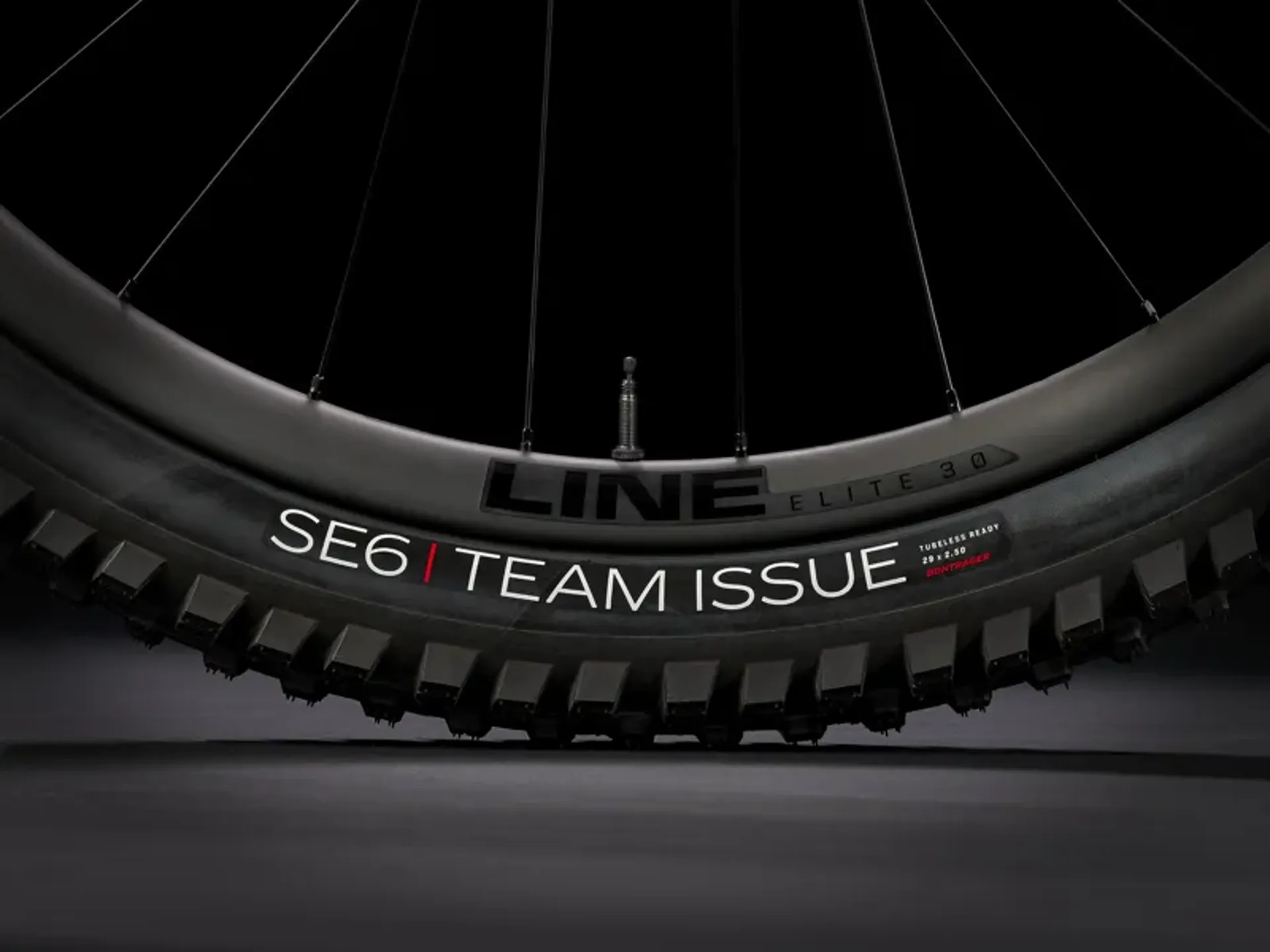

Wheels Model
Bontrager Line Elite 30, OCLV Mountain Carbon, Tubeless Ready, 6-bolt, Boost110, 15mm thru axle, Bontrager Line Elite 30, OCLV Mountain Carbon, Tubeless Ready, Rapid Drive 108, 6-bolt, SRAM XD driver, Boost148, 12 mm thru axle
