Frame

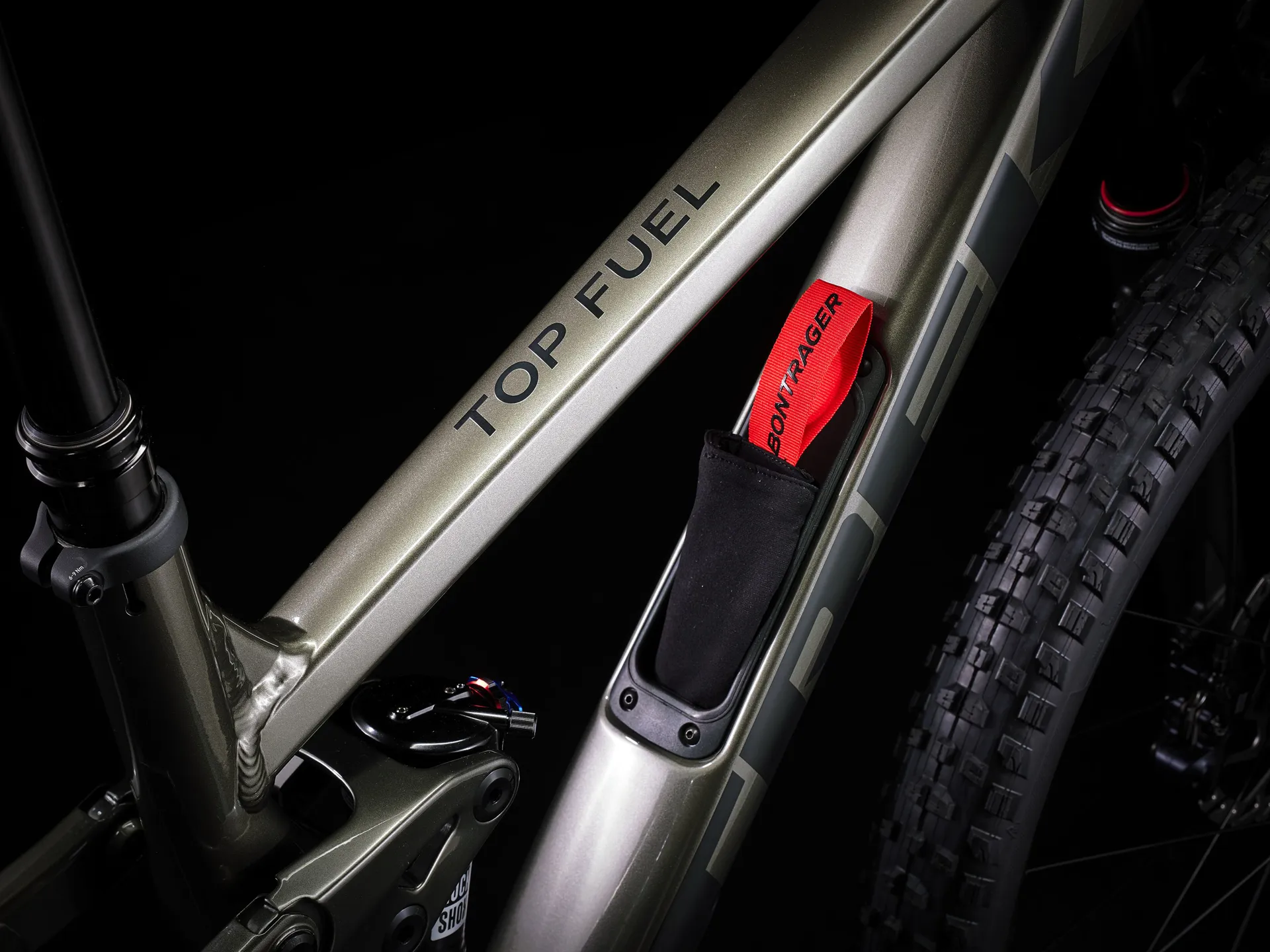

Alpha Platinum Aluminium, internal storage, tapered head tube, Knock Block 2.0, internal guided routing, downtube guard, magnesium rocker link, Mino Link, ABP, Boost148, 120 mm travel
Fork
Size: S, M, M/L, L, XL, XXL - RockShox Pike, DebonAir spring, Rush RC damper, tapered steerer, 44 mm offset, Boost110, 15 mm Maxle Stealth, 130 mm travel
Size: S, M, M/L, L, XL, XXL - RockShox SID, DebonAir spring, Rush RL damper, lockout, tapered steerer, 44 mm offset, Boost110, 15 mm Maxle Stealth, 130 mm travel

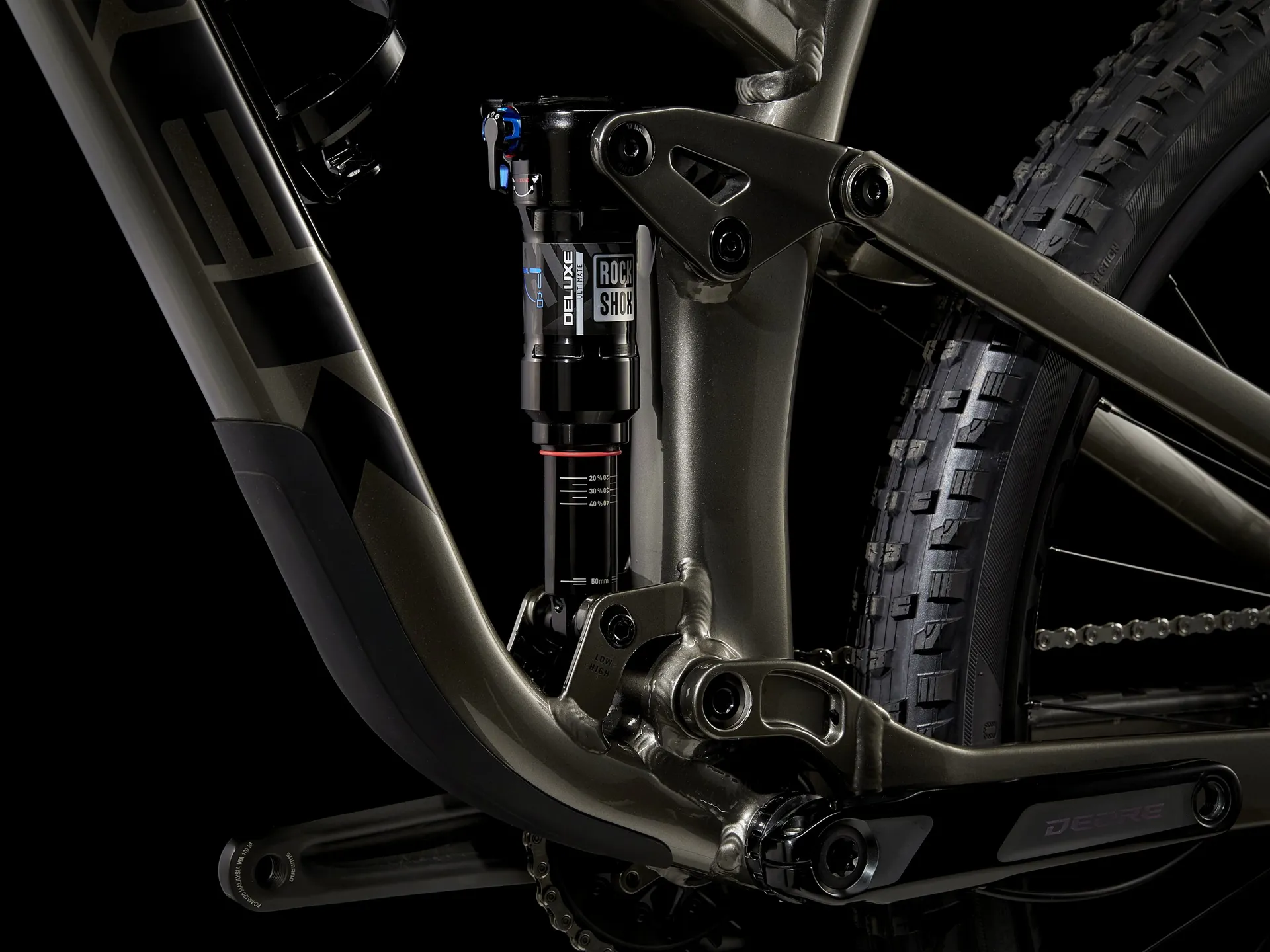

Shock
RockShox Deluxe Ultimate RCT, 185 mm x 50 mm
Max compatible fork travel
130mm (541mm axle-to-crown)
Wheel front
Bontrager Line Comp 30, Tubeless Ready, 6-bolt, Boost110, 15 mm thru axle, 29"
Wheel rear
Bontrager Line Comp 30, Tubeless Ready, Rapid Drive 108, 6-bolt, Boost148, 12 mm thru axle, 29"
Skewer rear
Bontrager Switch thru-axle, removable lever

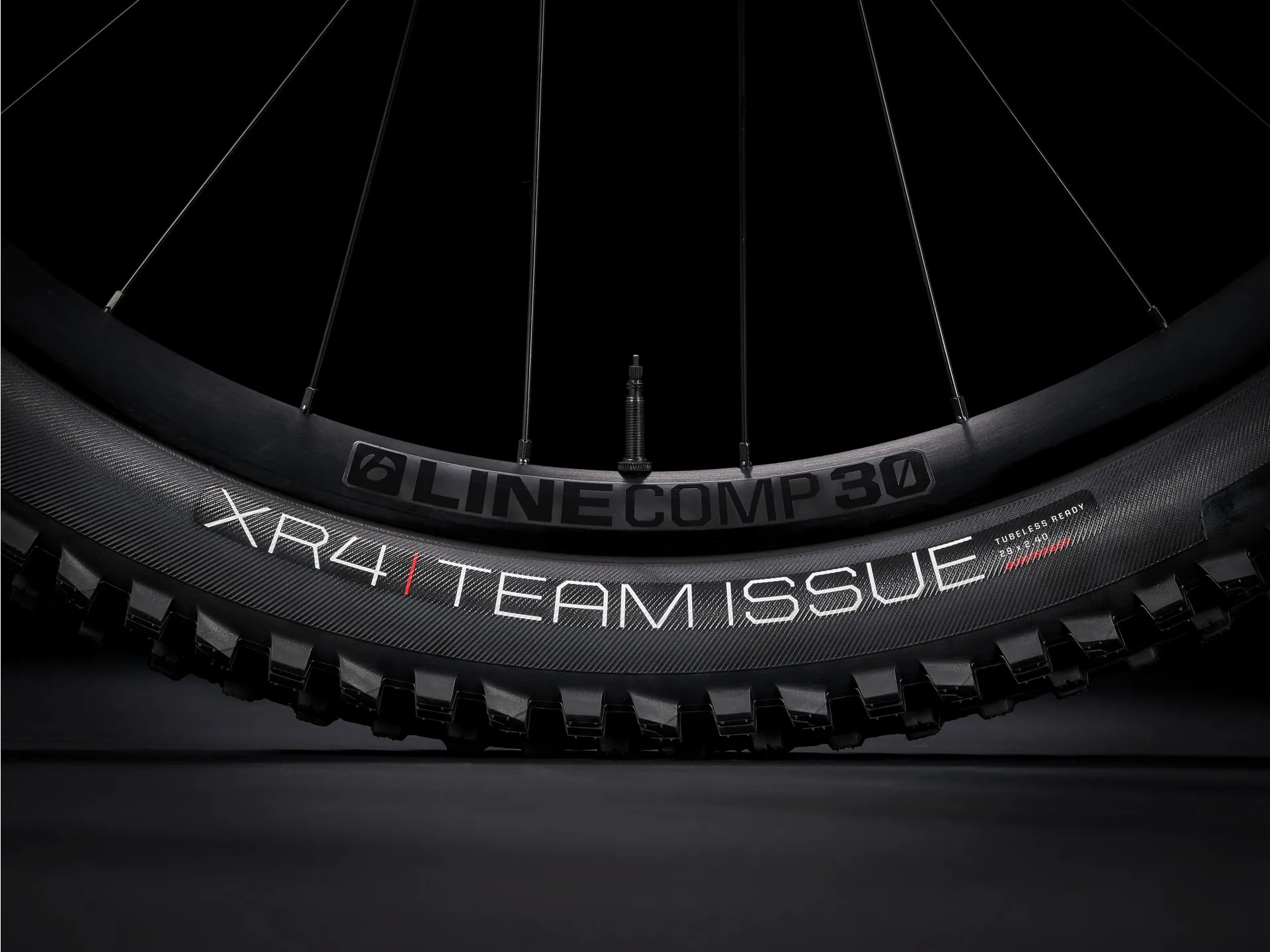

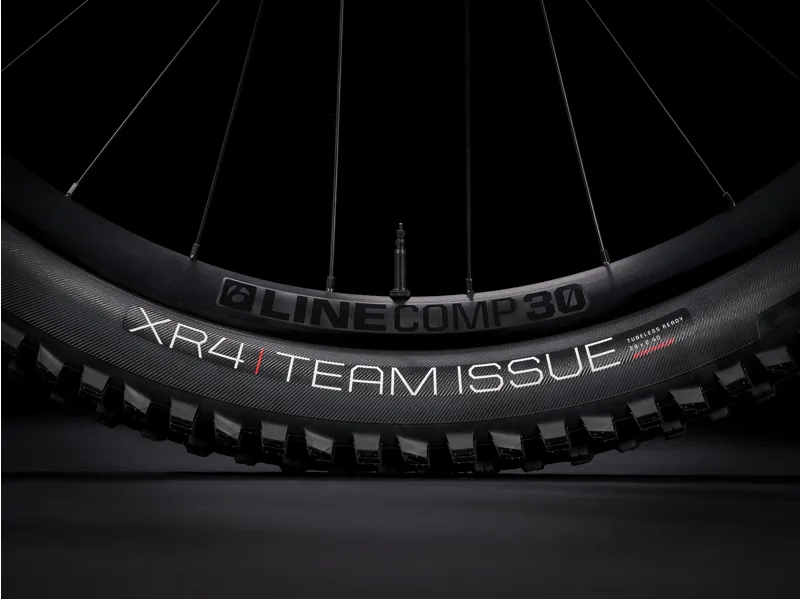

Tyre
Size: S, M, M/L, L, XL, XXL - Bontrager XR4 Team Issue, Tubeless Ready, Inner Strength sidewalls, aramid bead, 120 tpi, 29 x 2.40"
Size: S, M, M/L, L, XL, XXL - Bontrager XR4 Team Issue, Tubeless Ready, Inner Strength sidewalls, aramid bead, 120 tpi, 29x2.40"
Tyre part
Bontrager TLR sealant, 180 ml/6 oz
Max tyre size
Frame: 29x2.50", Fork: See manufacturer
Shifter
Shimano XT M8100, 12-speed

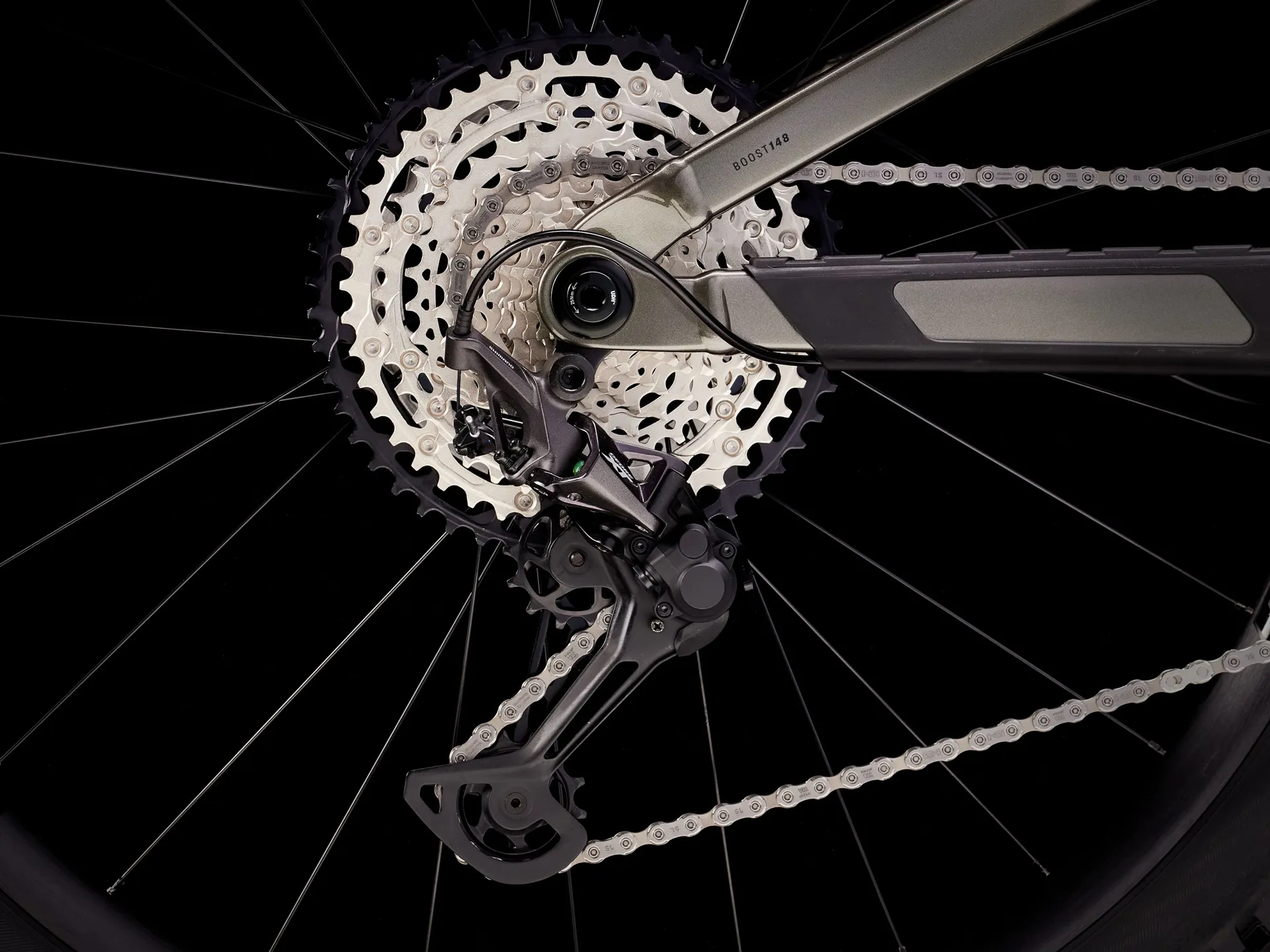

Rear derailleur
Shimano XT M8100, long cage
Crank
Size: S, M, M/L, L, XL, XXL - Shimano Deore M6120, 30T ring, 55 mm chainline, 170 mm length
Size: XL, XXL - Shimano Deore M6120, 30T ring, 55 mm chainline, 175 mm length
Bottom bracket
Shimano BB-MT501 BSA
Cassette
Shimano SLX M7100, 10-51T, 12-speed
Chain
Shimano SLX M7100, 12-speed
Max. chainring size
1x: 36T round, 34T oval, min 28T
Saddle
Bontrager Arvada, steel rails, 138 mm width
Seatpost
Size: S - TranzX JD-YSP39, 100 mm travel, internal routing, 34.9 mm
Size: M, M/L - TranzX JD-YSP39, 150 mm travel, internal routing, 34.9 mm
Size: L, XL, XXL - TranzX JD-YSP39, 170 mm travel, internal routing, 34.9 mm
Handlebar
Size: S - Bontrager Line, alloy, 35 mm, 27.5 mm rise, 750 mm width
Size: M, M/L, L, XL, XXL - Bontrager Line, alloy, 35 mm, 27.5 mm rise, 780 mm width
Grips
Bontrager XR Trail Comp, nylon lock-on

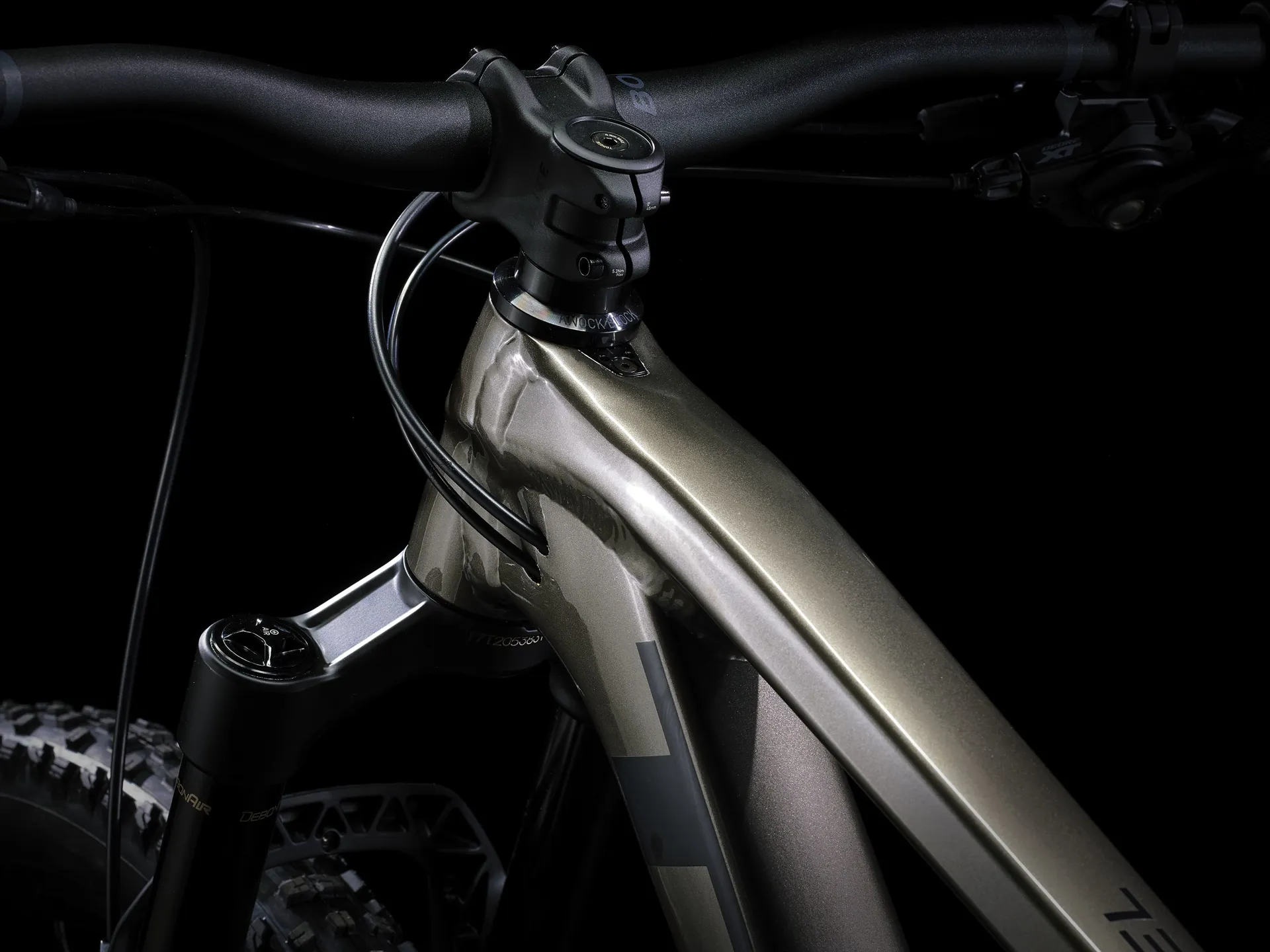

Stem
Bontrager Elite, 35 mm, 0-degree, 45 mm length
Brake
Size: S, M, M/L, L, XL, XXL - SRAM DB 8 4-piston hydraulic disc
Size: S, M, M/L, L, XL, XXL - Shimano 4-piston hydraulic disc, M6100 lever, M6120 calliper
Size: S, M, M/L, L, XL, XXL - Shimano M6120 4-piston hydraulic disc
Brake rotor
Size: S, M, M/L, L, XL, XXL - SRAM CenterLine, 6-bolt, round-edge, 160 mm
Size: S, M, M/L, L, XL, XXL - SRAM CentreLine, 6-bolt, round-edge, 180 mm
Size: S, M, M/L, L, XL, XXL - Shimano RT66, 6-bolt, 180 mm
Rotor size
Max brake rotor sizes - Frame: 180mm, Fork: see fork manufacturer
Weight
M - 14.85 kg / 32.74 lbs (with TLR sealant, no tubes)
Weight limit
This bike has a maximum total weight limit (combined weight of bicycle, rider and cargo) of 136 kg (300 lb)
