Top Fuel 9.8 is a full suspension carbon mountain bike for riders who don't settle. Not for parts nor for one style of riding.
Top Fuel 9.8 is a full suspension carbon mountain bike for riders who don't settle. Not for parts nor for one style of riding.
Trek

Trek Top Fuel 9.8 GX AXS Mountain Bike In Carbon Red Smoke

£6,575.00
Size Guide
Pre-Order

With Pre-Order, you can purchase the latest items added to our store in advance of them arriving with us.

Your Pre-Order is prioritised (at no additional charge); meaning that as soon as the product arrives with us, we can wrap it straight back up; ready for collection via Click & Collect or despatch to you — it often never even hits the stock room shelves!

Pre-Launch

With Pre-Launch, the date when we expect to receive the product ourselves is still a little too hazy to be confident in accepting Pre-Orders.

So, instead, you can submit your email address against the item you are interested in and we will email you as soon as stock arrives on the system.

Estimated Delivery & Collection Dates

Estimated Delivery & Collection Dates are given on Pre-Order and Pre-Launch products. They are for indication purposes only and can change at any time without notice.

The dates we provide are based on indications given by our suppliers. Whenever we get updated information from our suppliers we will endeavour to update the Estimated Delivery & Collection Dates provided on product pages.

We estimate this will be ready for despatch to you or collection via Click & Collect on Undetermined

Trek Top Fuel 9.8 GX AXS Mountain Bike In Carbon Red Smoke

Season:2023

Brand:Trek

Code:37062RED

Top Fuel 9.8 is a full suspension carbon mountain bike for riders who don't settle. Not for parts nor for one style of riding.

It combines a high-end parts package – including a new SRAM GX Eagle AXS wireless electronic drivetrain – with a low-weight carbon frame for one unbelievably fun rig that's fast on flow and fun to ride on techy singletrack.

It's right for you if - You’re looking for a do-it-all full-suspension mountain bike that's efficient and fast, but doesn't shy away from some bigger stuff. You want the added stiffness and weight savings of a carbon frame, and want blazing-fast wireless electronic shifting.

The tech you get - A light and stiff full carbon frame, 130 mm RockShox Pike Select+ fork, 120 mm of rear travel with a RockShox Deluxe Ultimate RCT shock and a SRAM GX Eagle AXS wireless electronic drivetrain with an extra-low 52-tooth climbing gear. Plus, wide carbon Bontrager Line Elite 30 wheels with a 108-tooth Rapid Drive hub for instant engagement, Bontrager Line Elite Dropper and carbon handlebars.

The final word - The Top Fuel 9.8 is a ridiculously fun carbon down-country bike with upgraded parts that give you big benefits on the trail, like more speed from the carbon wheels, more grip from the ultra-smooth suspension and faster, more precise shifts from the AXS drivetrain.

Features:

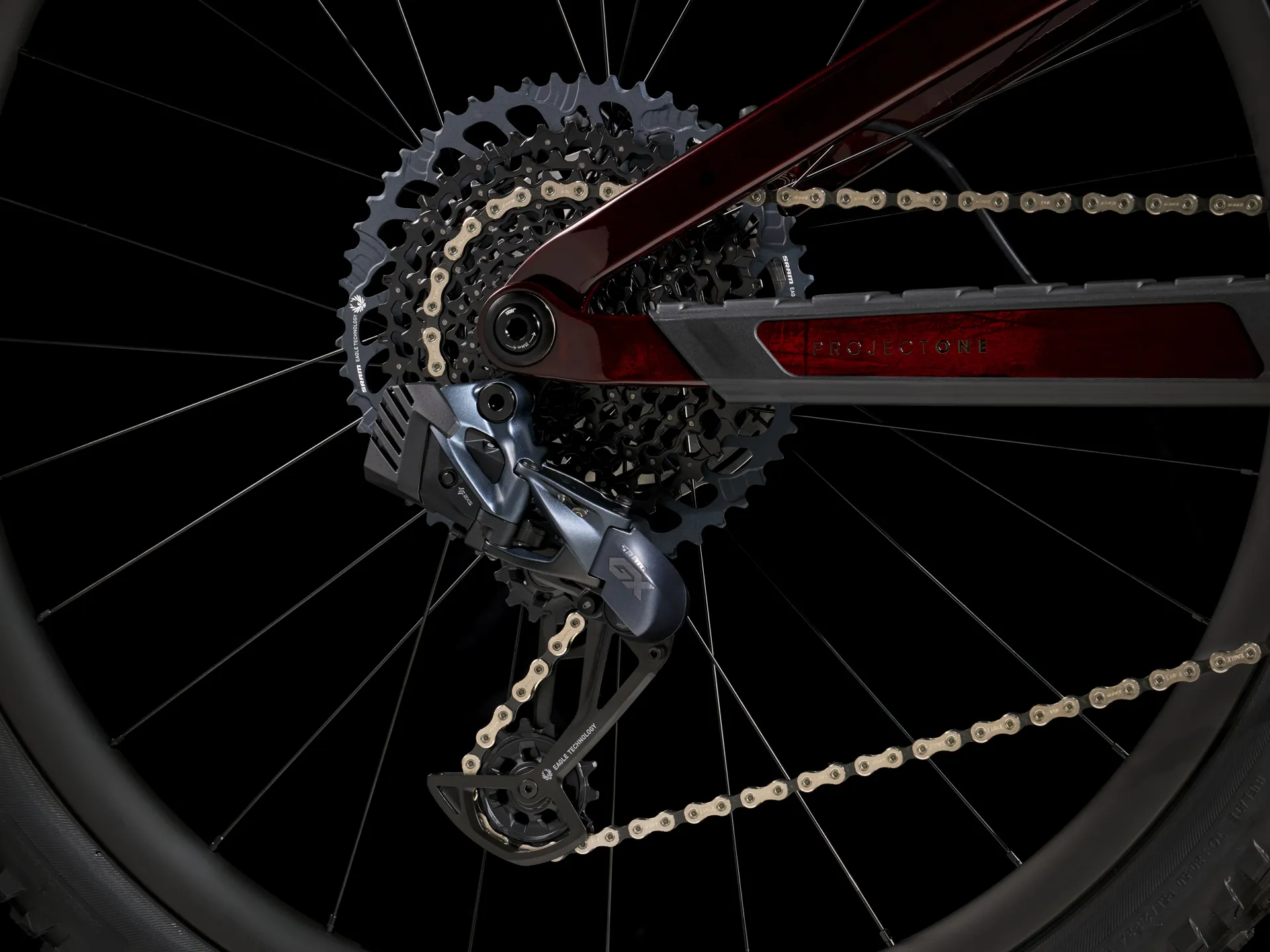

  • The SRAM GX Eagle AXS drivetrain is smart, smooth and completely wireless

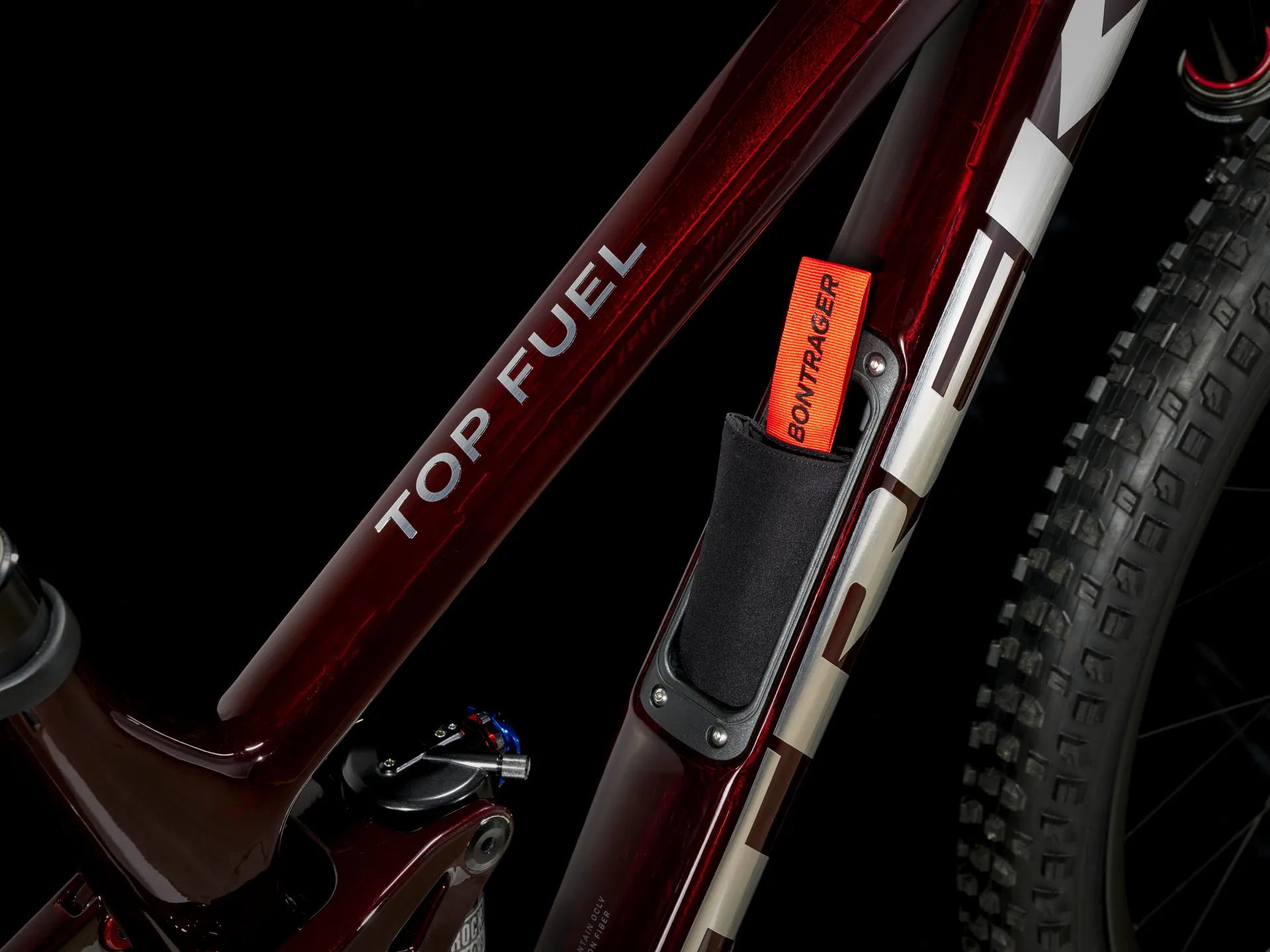

  • A sleek internal storage compartment gives you a versatile spot to stow tools and gear

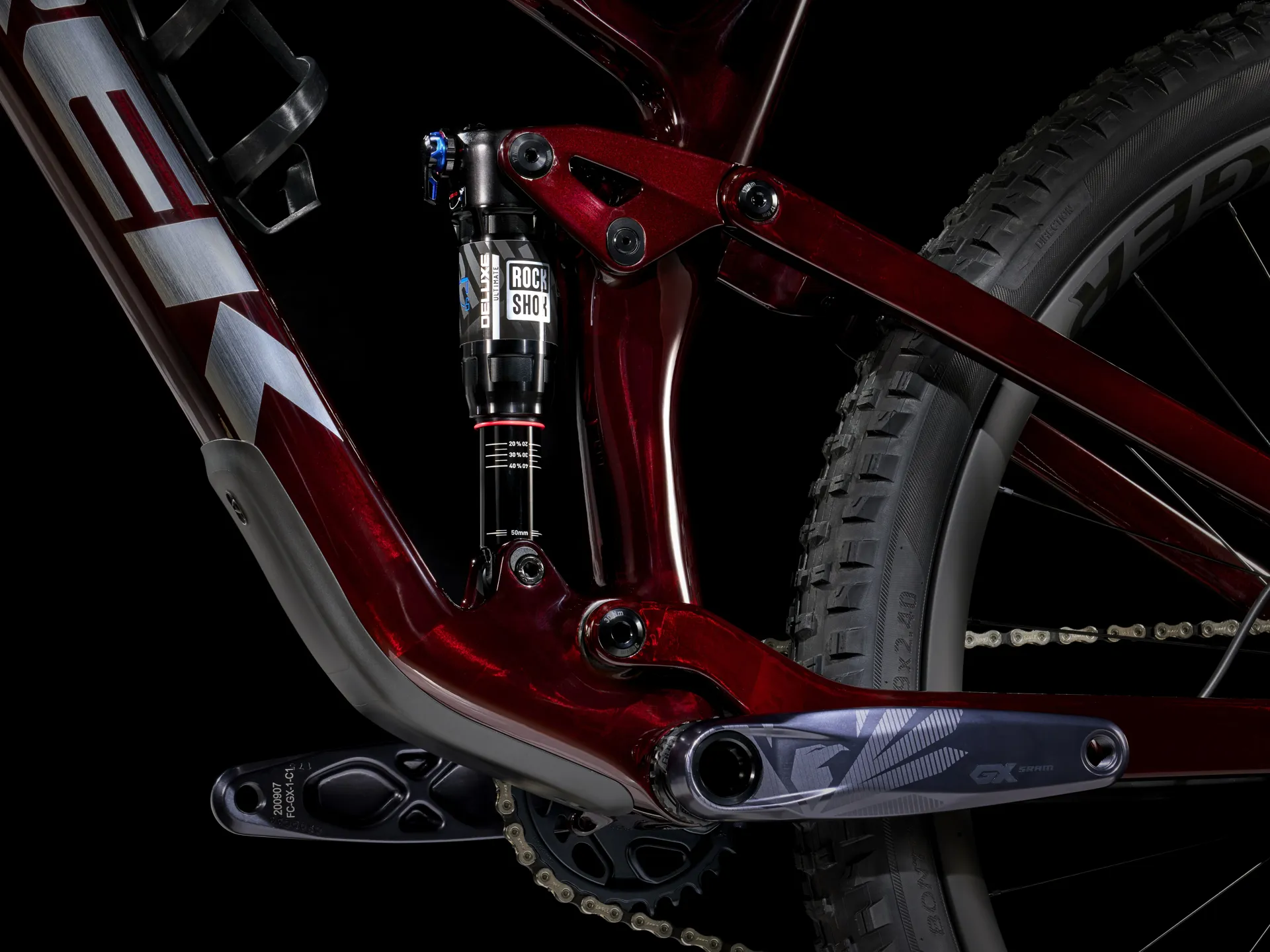

  • This bike’s killer suspension set-up is both efficient and ready to party
  • Wider Line Elite 30 wheels provide better tyre support so you can run lower pressure and get more traction
Technical Information
  • Frame
    OCLV Mountain Carbon, internal storage, tapered head tube, Knock Block 2.0, internal guided routing, downtube guard, magnesium rocker link, Mino Link, ABP, Boost148, 120 mm travel
  • Fork
    RockShox Pike Select+, DebonAir spring, Charger 3 RC2 damper, tapered steerer, 44mm offset, Boost110, 15mm Maxle Stealth, 130mm travel
  • Shock
    RockShox Deluxe Ultimate RCT, 185 mm x 50 mm
  • Max compatible fork travel
    130mm (541mm axle-to-crown)
  • *Wheel front
    Size: XSBontrager Line Elite 30, OCLV Mountain Carbon, Tubeless Ready, 6-bolt, Boost110, 15mm thru axle, 27.5"Size: S, M, M/L, L, XLBontrager Line Elite 30, OCLV Mountain Carbon, Tubeless Ready, 6-bolt, Boost110, 15mm thru axle, 29"
  • *Wheel rear
    Size: XSBontrager Line Elite 30, OCLV Mountain Carbon, Tubeless Ready, Rapid Drive 108, 6-bolt, SRAM XD driver, Boost148, 12 mm thru axle, 27.5"Size: S, M, M/L, L, XLBontrager Line Elite 30, OCLV Mountain Carbon, Tubeless Ready, Rapid Drive 108, 6-bolt, SRAM XD driver, Boost148, 12 mm thru axle, 29"
  • Skewer rear
    Bontrager Switch thru-axle, removable lever
  • *Tyre
    Size: XSBontrager XR4 Team Issue, Tubeless Ready, Inner Strength sidewalls, aramid bead, 120 tpi, 27.5 x 2.40''Size: S, M, M/L, L, XLBontrager XR4 Team Issue, Tubeless Ready, Inner Strength sidewalls, aramid bead, 120 tpi, 29 x 2.40''
  • Tyre part
    Bontrager TLR sealant, 180 ml/6 oz
  • Rim strip
    Bontrager TLR
  • Max tyre size
    Frame: 29x2.50", Fork: See manufacturer
  • Shifter
    SRAM GX Eagle AXS, 12 speed
  • Rear derailleur
    SRAM GX Eagle AXS
  • *Crank
    Size: XS, S, M, M/L, LSRAM GX Eagle, DUB MTB Wide, 30T, 55mm chainline, 170 lengthSize: XLSRAM GX Eagle, DUB MTB Wide, 30T, 55mm chainline, 175 length
  • Bottom bracket
    SRAM DUB MTB Wide, 73 m, BSA threaded
  • Cassette
    SRAM Eagle XG-1275, 10-52, 12-speed
  • Chain
    SRAM GX Eagle, 12-speed
  • Max. chainring size
    1x: 36T round, 34T oval, min 28T
  • Saddle
    Bontrager Arvada, austenite rails, 138 mm width
  • *Seatpost
    Size: XS, SBontrager Line Elite Dropper, 100mm travel, MaxFlow, internal routing, 34.9mm, 345mm lengthSize: M, M/LBontrager Line Elite Dropper, 150 mm travel, MaxFlow, internal routing, 34.9mm, 440 mm lengthSize: LBontrager Line Elite Dropper, 170 mm travel, MaxFlow, internal routing, 34.9mm, 485 mm lengthSize: XLBontrager Line Elite Dropper, 200 mm travel, MaxFlow, internal routing, 34.9mm, 550 mm length
  • *Handlebar
    Size: XS, SBontrager Line Pro, OCLV Carbon, 35 mm, 15 mm rise, 750 mm widthSize: M, M/L, L, XLBontrager Line Pro, OCLV Carbon, 35 mm, 27.5 mm rise, 780 mm width
  • Grips
    Bontrager XR Trail Elite, nylon lock-on
  • Stem
    Bontrager Line Pro, 35 mm, Blendr-compatible, 0-degree, 45 mm length
  • Head set
    Knock Block 2.0 Integrated, 72-degree radius (includes infinite-radius chip), sealed cartridge bearing, 1-1/8" top, 1.5" bottom
  • Brake
    SRAM G2 RS hydraulic disc
  • *Brake rotor
    Size: XS, S, M, M/L, L, XLSRAM CenterLine, 6-bolt, round-edge, 160 mmSize: XS, S, M, M/L, L, XLSRAM CentreLine, 6-bolt, round-edge, 180 mm
  • Rotor size
    Max brake rotor sizes - Frame: 180mm, Fork: see fork manufacturer
  • Bag
    Bontrager BITS Internal Frame Storage Bag
  • Weight
    M - 12.60 kg / 27.78 lbs (with TLR sealant, no tubes)
  • Weight limit
    This bike has a maximum total weight limit (combined weight of bicycle, rider and cargo) of 136 kg (300 lb).
