The Top Fuel 9.8 GX AXS Gen 4 is a lightweight carbon trail bike built to rip up climbs and stay playful on descents.
The Top Fuel 9.8 GX AXS Gen 4 is a lightweight carbon trail bike built to rip up climbs and stay playful on descents.
Trek

Trek Top Fuel 9.8 GX AXS Mountain Bike In Matte Dark Web

£6,500.00
Size Guide
Pre-Order

With Pre-Order, you can purchase the latest items added to our store in advance of them arriving with us.

Your Pre-Order is prioritised (at no additional charge); meaning that as soon as the product arrives with us, we can wrap it straight back up; ready for collection via Click & Collect or despatch to you — it often never even hits the stock room shelves!

Pre-Launch

With Pre-Launch, the date when we expect to receive the product ourselves is still a little too hazy to be confident in accepting Pre-Orders.

So, instead, you can submit your email address against the item you are interested in and we will email you as soon as stock arrives on the system.

Estimated Delivery & Collection Dates

Estimated Delivery & Collection Dates are given on Pre-Order and Pre-Launch products. They are for indication purposes only and can change at any time without notice.

The dates we provide are based on indications given by our suppliers. Whenever we get updated information from our suppliers we will endeavour to update the Estimated Delivery & Collection Dates provided on product pages.

We estimate this will be ready for despatch to you or collection via Click & Collect on Undetermined

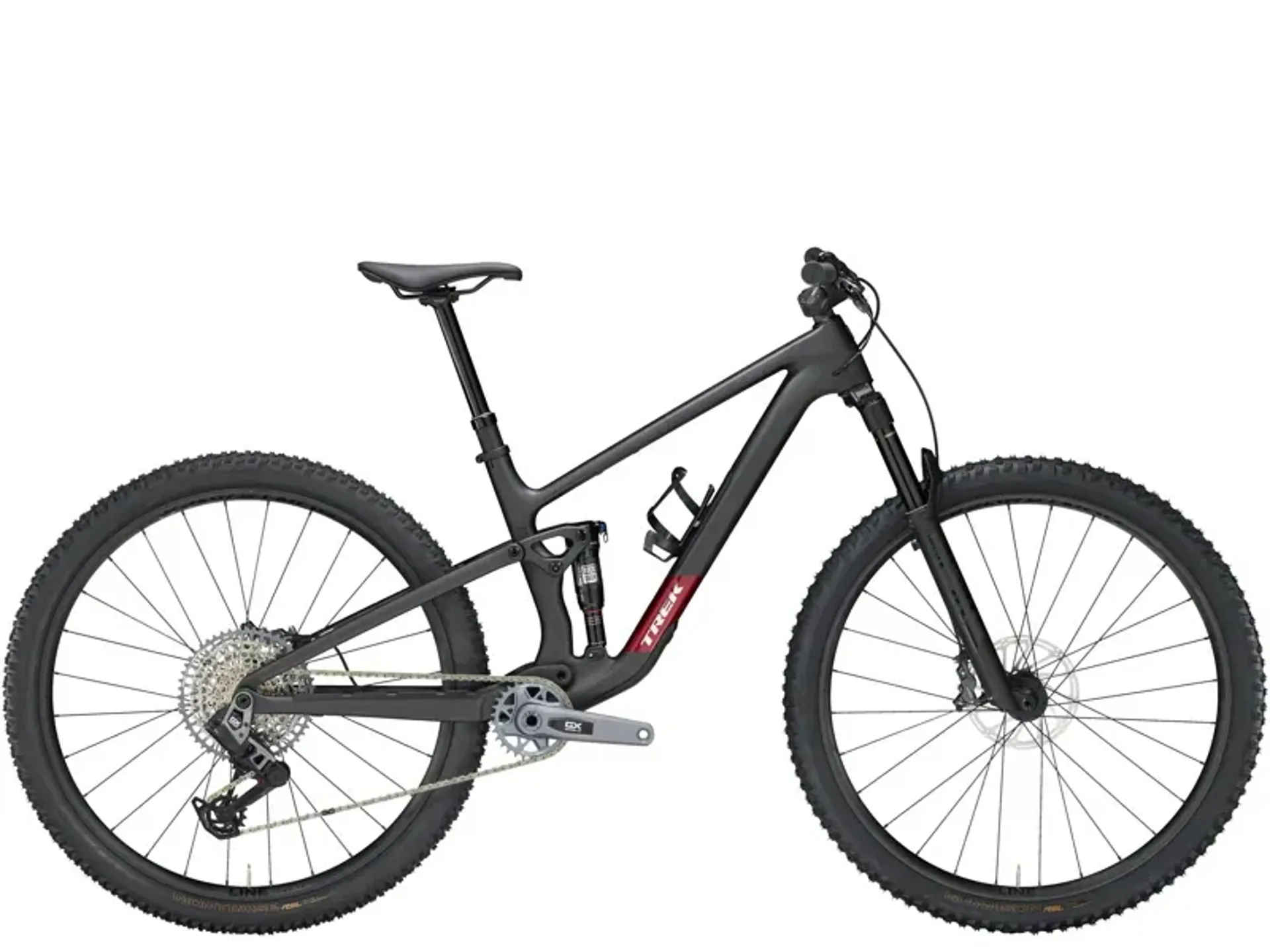

Trek Top Fuel 9.8 GX AXS Mountain Bike In Matte Dark Web

Season:2025

Brand:Trek

Code:46147BLK

The Top Fuel 9.8 GX AXS Gen 4 is a lightweight carbon trail bike built to rip up climbs and stay playful on descents.

It gives you the confidence you want through roots and rocks, thanks to a 120 mm/130 mm RockShox suspension package with a Pike Select+ fork and Deluxe Ultimate shock. Plus, you can shift easy even under load with a SRAM GX Eagle AXS wireless transmission.

It's right for you if...You're after a carbon trail bike that keeps weight to a minimum without compromising on capability. You like to ride everything – long alpine climbs, rooty aspen slalom, fast XC singletrack and you want a bike that can keep up on the ups and hold its own on the downs. Keeping things light with a carbon frame is important to you, and you want the smooth-shifting performance of a direct mount transmission.

The tech you get - An OCLV Mountain Carbon frame with a 4-way Mino Link lower shock mount for tweaking geometry and suspension leverage rate. A 130 mm RockShox Pike Select+ fork with DebonAir spring, and Charger 3.1 RC2 damper, plus 120 mm of rear travel from a RockShox Deluxe Ultimate RCT shock. A SRAM GX Eagle wireless transmission, SRAM Level Bronze 4-piston hydraulic brakes, Bontrager Line dropper post and tubeless-ready Bontrager Line Comp 30 wheels.

The final word - If you're after a light carbon trail bike that balances a playful and capable ride, reach for the Top Fuel 9.8 GX AXS Gen 4. Its ultra-lightweight frame pairs with a 4-way Mino Link lower suspension mount for taking control of your geometry and suspension feel. Plus, you get a wireless SRAM GX AXS transmission and sweet RockShox suspension package.

Features:
  • The Top Fuel Gen 4 delivers with an intensely lightweight build, improved in-frame storage and more adjustability for all kinds of rides and riders
  • With 120 mm rear and 130 mm front RockShox suspension, it delivers a well-balanced ride that stays efficient on the ups and playful on descents
  • The 4-way Mino Link makes it easy to adjust your geometry or leverage rate for how and where you want to ride
  • In-frame storage with an improved BITS bag system makes it easy to stash tools, tubes and snacks
  • It's more upgrade-ready than ever, with room for bigger 140 mm forks and longer-stroke shocks for up to 130 mm of rear travel, plus room for extra-long dropper posts
Technical Information
  • Frame
    OCLV Mountain Carbon, internal storage, tapered head tube, internal guided routing, downtube guard, OCLV Next rocker link, Mino 4 link, ABP, Boost148, 120 mm travel
  • Fork
    RockShox Pike Select+, DebonAir spring, Charger 3.1 RC2 damper, tapered steerer, 44 mm offset, Boost110, 15 mm Maxle Stealth, 130 mm travel
  • Shock
    RockShox Deluxe Ultimate RCT, 185 mm x 50 mm
  • Max Compatible Fork Travel
    140 mm
  • Wheel Front (Size: S)
    Bontrager Line Comp 30, Tubeless Ready, 6-bolt, Boost110, 15 mm thru axle, 27.5"
  • Wheel Front (Size: M, ML, L, XL)
    Bontrager Line Comp 30, Tubeless Ready, 6-bolt, Boost110, 15 mm thru axle, 29"
  • Wheel Rear (Size: S)
    Bontrager Line Comp 30, Tubeless Ready, Rapid Drive 108, 6-bolt, Boost148, 12 mm thru axle, 27.5"
  • Wheel Rear (Size: M, ML, L, XL)
    Bontrager Line Comp 30, Tubeless Ready, Rapid Drive 108, 6-bolt, Boost148, 12 mm thru axle, 29"
  • Skewer Rear
    Bontrager Switch thru-axle, removable lever
  • Tyre (Size: S)
    Bontrager Gunnison RSL XT, Tubeless-Ready, triple compound, aramid bead, 120 tpi, 27.5x2.40"
  • Tyre (Size: M, ML, L, XL)
    Bontrager Montrose RSL XT, Tubeless-Ready, triple compound, aramid bead, 120 tpi, 29x2.40"
  • Tyre (Size: M, ML, L, XL)
    Bontrager Gunnison RSL XT, Tubeless-Ready, triple compound, aramid bead, 120 tpi, 29x2.40"
  • Rim Strip
    Bontrager TLR
  • Max Tyre Size
    Frame: 29x2.50", Fork: See manufacturer
  • Battery
    SRAM eTap battery pack (with charger)
  • Shifter
    SRAM AXS POD
  • Rear Derailleur
    SRAM GX Eagle AXS, T-Type
  • Crank
    SRAM GX Eagle, T-Type, DUB, 30T, 55 mm chain line, 170 mm length
  • Bottom Bracket
    SRAM DUB MTB Wide, 73 m, BSA threaded
  • Cassette
    SRAM Eagle XS-1275, T-Type, 10-52, 12-speed
  • Chain
    SRAM GX Eagle, T-Type, 12-speed
  • Max. Chainring Size
    1x: 34T, min 30T
  • Saddle
    Verse Short Comp, steel rails, 145 mm width
  • Seatpost (Size: S)
    Bontrager Line Dropper, 100 mm travel, MaxFlow, internal routing, 34.9 mm, 310 mm length
  • Seatpost (Size: M, ML, L, XL)
    Bontrager Line Dropper, 170 mm travel, MaxFlow, internal routing, 34.9 mm, 450 mm length
  • Handlebar/Stem (Integrated) (Size: S)
    Bontrager RSL Integrated handlebar/stem, OCLV Carbon, 27.5 mm handlebar rise, 820 mm width, 0-degree stem rise, 35 mm stem length
  • Handlebar/Stem (Integrated) (Size: M, ML, L, XL)
    Bontrager RSL Integrated handlebar/stem, OCLV Carbon, 27.5 mm handlebar rise, 820 mm width, 0-degree stem rise, 45 mm stem length
  • Grips
    Bontrager XR Trail Elite, nylon lock-on
  • Brake
    SRAM Level Bronze 4-piston hydraulic disc
  • Brake Rotor
    SRAM CentreLine, 6-bolt, round-edge, 180 mm
  • Rotor Size
    Max brake rotor sizes – Frame: 200 mm, min 180 mm, Fork: see fork manufacturer
  • Bag
    Bontrager BITS Internal Frame Storage Bag
  • Weight
    M - 13.10 kg / 28.89 lbs (with TLR sealant, no tubes)
  • Weight Limit
    This bike has a maximum total weight limit (combined weight of bicycle, rider and cargo) of 136 kg (300 lb).
