The Top Fuel 9.8 XT Gen 4 is a lightweight carbon trail bike built to rip up climbs and stay playful on descents.
The Top Fuel 9.8 XT Gen 4 is a lightweight carbon trail bike built to rip up climbs and stay playful on descents.
Trek

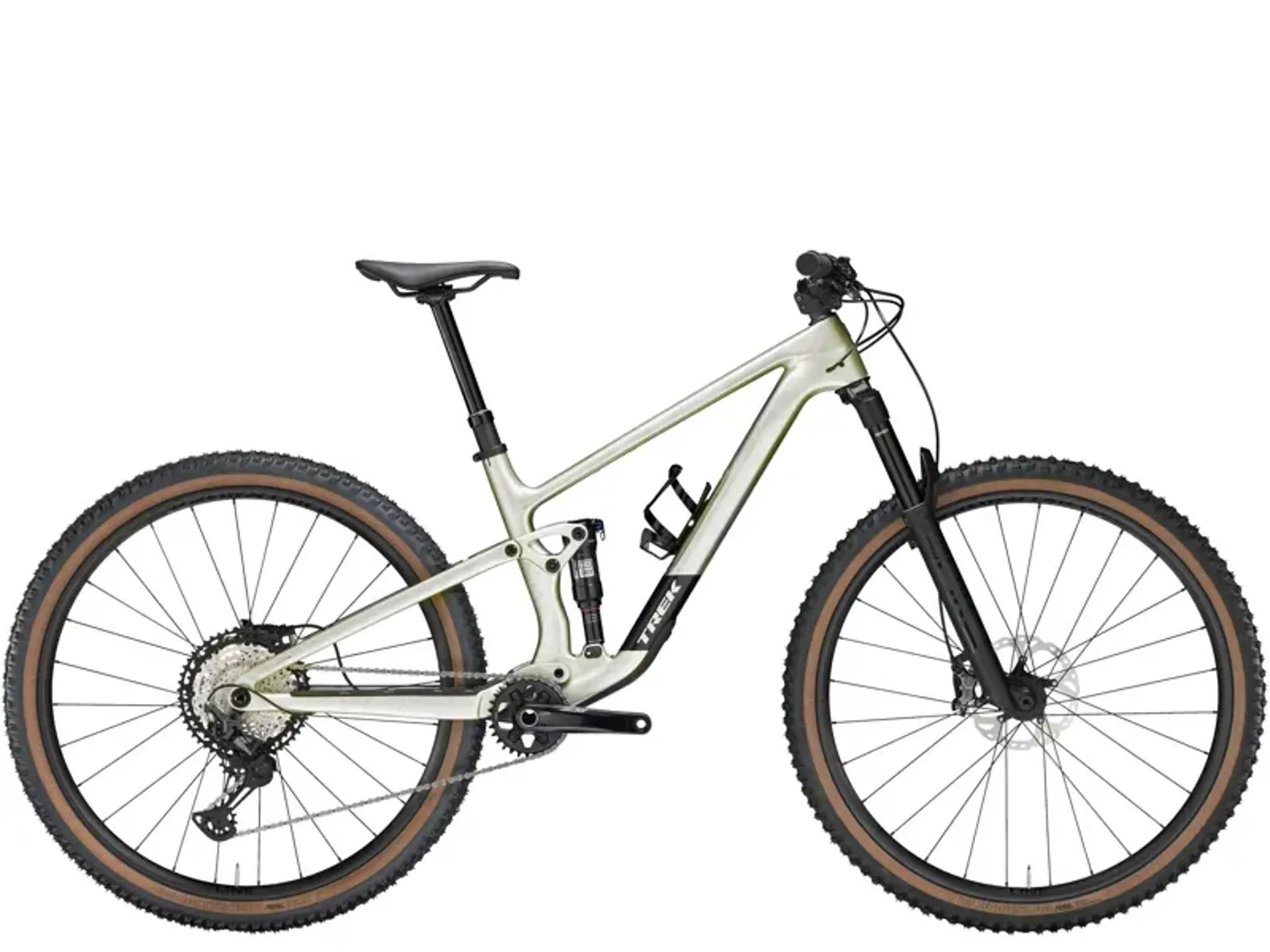

Trek Top Fuel 9.8 XT Gen 4 Mountain Bike In Lunar Silver

£6,000.00
Size Guide
Trek Top Fuel 9.8 XT Gen 4 Mountain Bike In Matte Dark Web
Pre-Order

With Pre-Order, you can purchase the latest items added to our store in advance of them arriving with us.

Your Pre-Order is prioritised (at no additional charge); meaning that as soon as the product arrives with us, we can wrap it straight back up; ready for collection via Click & Collect or despatch to you — it often never even hits the stock room shelves!

Pre-Launch

With Pre-Launch, the date when we expect to receive the product ourselves is still a little too hazy to be confident in accepting Pre-Orders.

So, instead, you can submit your email address against the item you are interested in and we will email you as soon as stock arrives on the system.

Estimated Delivery & Collection Dates

Estimated Delivery & Collection Dates are given on Pre-Order and Pre-Launch products. They are for indication purposes only and can change at any time without notice.

The dates we provide are based on indications given by our suppliers. Whenever we get updated information from our suppliers we will endeavour to update the Estimated Delivery & Collection Dates provided on product pages.

We estimate this will be ready for despatch to you or collection via Click & Collect on Undetermined

Trek Top Fuel 9.8 XT Gen 4 Mountain Bike In Lunar Silver

Season:2025

Brand:Trek

Code:46161SIL

The Top Fuel 9.8 XT Gen 4 is a lightweight carbon trail bike built to rip up climbs and stay playful on descents.

It gives you the confidence you want through roots and rocks, thanks to a 120 mm/130 mm RockShox suspension package with a Pike Select+ fork and Deluxe Ultimate shock. Plus, you get clean shifts from a 12-speed Shimano XT drivetrain.

It's right for you if...You're after a carbon trail bike that keeps weight to a minimum without compromising on capability. You like to ride everything – long alpine climbs, rooty aspen slalom, fast XC singletrack and you want a bike that can keep up on the ups and hold its own on the downs. Keeping things light with a carbon frame is important to you, and you want the light yet precise shifting of a Shimano XT drivetrain.

The tech you get - An OCLV Mountain Carbon frame with a 4-way Mino Link lower shock mount for tweaking geometry and suspension leverage rate. A 130 mm RockShox Pike Select+ fork with DebonAir spring, and Charger 3.1 RC2 damper, plus 120 mm of rear travel from a RockShox Deluxe Ultimate RCT shock. A Shimano XT 12-speed drivetrain, Shimano XT 4-piston hydraulic brakes, Bontrager Line dropper post and tubeless-ready Bontrager Line Comp 30 wheels.

The final word - If you're after a light carbon trail bike that balances a playful and capable ride, reach for Top Fuel 9.8 XT Gen 4. Its ultra-lightweight frame pairs with a 4-way Mino Link lower suspension mount for taking control of your geometry and suspension feel. Plus, you get clean shifts from a Shimano XT drivetrain and a sweet RockShox suspension package.

Features:
  • The Top Fuel Gen 4 delivers with an intensely lightweight build, improved in-frame storage and more adjustability for all kinds of rides and riders
  • With 120 mm rear and 130 mm front RockShox suspension, it delivers a well-balanced ride that stays efficient on the ups and playful on descents
  • The 4-way Mino Link makes it easy to adjust your geometry or leverage rate for how and where you want to ride
  • In-frame storage with an improved BITS bag system makes it easy to stash tools, tubes and snacks
  • It's more upgrade-ready than ever, with room for bigger 140 mm forks and longer-stroke shocks for up to 130 mm of rear travel, plus room for extra-long dropper posts
Technical Information
  • Frame
    OCLV Mountain Carbon, internal storage, tapered head tube, internal guided routing, downtube guard, OCLV Next rocker link, Mino 4 link, ABP, Boost148, 120 mm travel
  • Shock
    RockShox Deluxe Ultimate RCT, 185 mm x 50 mm
  • Max Compatible Fork Travel
    140 mm
  • Wheel Front (Size: S)
    Bontrager Line Comp 30, Tubeless Ready, 6-bolt, Boost110, 15 mm thru axle, 27.5"
  • Wheel Front (Size: M, ML, L, XL)
    Bontrager Line Comp 30, Tubeless Ready, 6-bolt, Boost110, 15 mm thru axle, 29"
  • Wheel Rear (Size: S)
    Bontrager Line Comp 30, High Strength 6000 Series Aluminium rim, Tubeless-Ready, Rapid Drive 108, 6-bolt, Shimano MicroSpline freehub, Boost148, 12 mm thru axle, 27.5"
  • Wheel Rear (Size: M, ML, L, XL)
    Bontrager Line Comp 30, High Strength 6000 Series Aluminium rim, Tubeless-Ready, Rapid Drive 108, 6-bolt, Shimano MicroSpline freehub, Boost148, 12 mm thru axle, 29"
  • Skewer Rear
    Bontrager Switch thru-axle, removable lever
  • Tyre (Size: S)
    Bontrager Gunnison RSL XT, Tubeless-Ready, triple compound, aramid bead, 120 tpi, 27.5x2.40"
  • Tyre (Size: M, ML, L, XL)
    Bontrager Montrose RSL XT, Tubeless-Ready, triple compound, aramid bead, 120 tpi, 29x2.40"
  • Tyre (Size: M, ML, L, XL)
    Bontrager Gunnison RSL XT, Tubeless-Ready, triple compound, aramid bead, 120 tpi, 29x2.40"
  • Rim Strip
    Bontrager TLR
  • Max Tyre Size
    Frame: 29x2.50", Fork: See manufacturer
  • Shifter
    Shimano XT M8100, 12-speed
  • Rear Derailleur
    Shimano XT M8100, long cage
  • Crank
    Shimano XT M8120, 30T, 55 mm chain line, 170 mm length
  • Bottom Bracket
    Shimano BB-MT501 BSA
  • Cassette
    Shimano XT M8100, 10-51, 12-speed
  • Chain
    Shimano Ultegra/XT M8100, 12-speed
  • Max. Chainring Size
    1x: 34T, min 30T
  • Saddle
    Verse Short Comp, steel rails, 145 mm width
  • Seatpost (Size: S)
    Bontrager Line Dropper, 100mm travel, MaxFlow, internal routing, 34.9 mm, 310mm length
  • Seatpost (Size: M, ML, L, XL)
    Bontrager Line Dropper, 170 mm travel, MaxFlow, internal routing, 34.9 mm, 450 mm length
  • Grips
    Bontrager XR Trail Elite, nylon lock-on
  • Brake
    Shimano XT M8120 4-piston hydraulic disc
  • Brake Rotor
    Shimano RT86, 6-bolt, 180 mm
  • Rotor Size
    Max brake rotor sizes – Frame: 200 mm, min 180 mm, Fork: see fork manufacturer
  • Bag
    Bontrager BITS Internal Frame Storage Bag
  • Weight
    M - 13.45 kg / 29.66 lbs (with TLR sealant, no tubes)
  • Weight Limit
    This bike has a maximum total weight limit (combined weight of bicycle, rider and cargo) of 136 kg (300 lb).
