Wheel Size Front
29
Wheel Size Rear
29
Frame Type
UNI
Frame Size
40
Frame Size Supplier
M
Frame Material
CARBON
Frame Description
OCLV Mountain Carbon, high main pivot, idler pulley, internal storage, angle-adjust headset, Mino Link adjustable geometry, adjustable leverage rate, integrated frame protection, internal routing, magnesium rocker link, ISCG 05, Active Braking Pivot, UDH, 148x12 mm thru axle, 170 mm travel
Seat Tube Length
40
Seat Tube Angle
73.8
Chainstay Length
42.9
Head Angle
63.3
Head Tube Length
10
Toptube Length
57.8
Bottom Bracket Height
35.1
Bottom Bracket Drop
2.7
Frame Reach
44.8
Frame Stack
62.3
Wheelbase
122.4
Stand Over Height
76.6
Trail
14.3
Offset
4.3
Gear Model
SRAM XX Eagle AXS, T-Type
Gear Type
DERAILLEUR
Number Of Gears
1
Primary Rear Brake Model
SRAM Code Ultimate 4-piston hydraulic disc // SRAM Code Ultimate 4-piston hydraulic disc, SRAM 6-bolt, 200 mm
Primary Rear Brake Type
SH
Front Brake Model
SRAM Code Ultimate 4-piston hydraulic disc // SRAM Code Ultimate 4-piston hydraulic disc, SRAM 6-bolt, 200 mm
Front Brake Type
SH
Fork Model
RockShox ZEB Ultimate Flight Attendant, DebonAir spring, Charger 2.1 RCT3 AXS damper, 1.5" tapered steerer, 44 mm offset, Boost110, 15 mm Maxle Stealth, 170 mm travel
Derailleur Rear Model
SRAM XX Eagle AXS, T-Type
Crankset Model
SRAM XX Eagle, T-Type, DUB, 34T ring, 55 mm chain line, 165 mm length, SRAM DUB MTB Wide, 73 m, BSA threaded
Shifters Model
SRAM Eagle AXS, wireless, 12-speed // SRAM AXS POD Ultimate
Chain Model
SRAM XX Eagle, T-Type, 12-speed
Cassette Model
SRAM Eagle XS-1297, T-Type, 10-52, 12-speed
Handlebar Model
Bontrager RSL Integrated handlebar/stem, OCLV Carbon, 27.5 mm handlebar rise, 820 mm width, 0-degree stem rise, 35 mm stem length
Headset Model
Integrated cartridge bearing, 1-1/8" top, 1.5" bottom, angle adjust cup compatible
Bartape Or Grips Model
Bontrager XR Trail Pro, alloy lock-on
Seatpost Model
RockShox Reverb AXS, 150 mm travel, wireless, 34.9 mm, 440 mm length
Saddle Model
Bontrager Arvada, austenite rails, 138 mm width

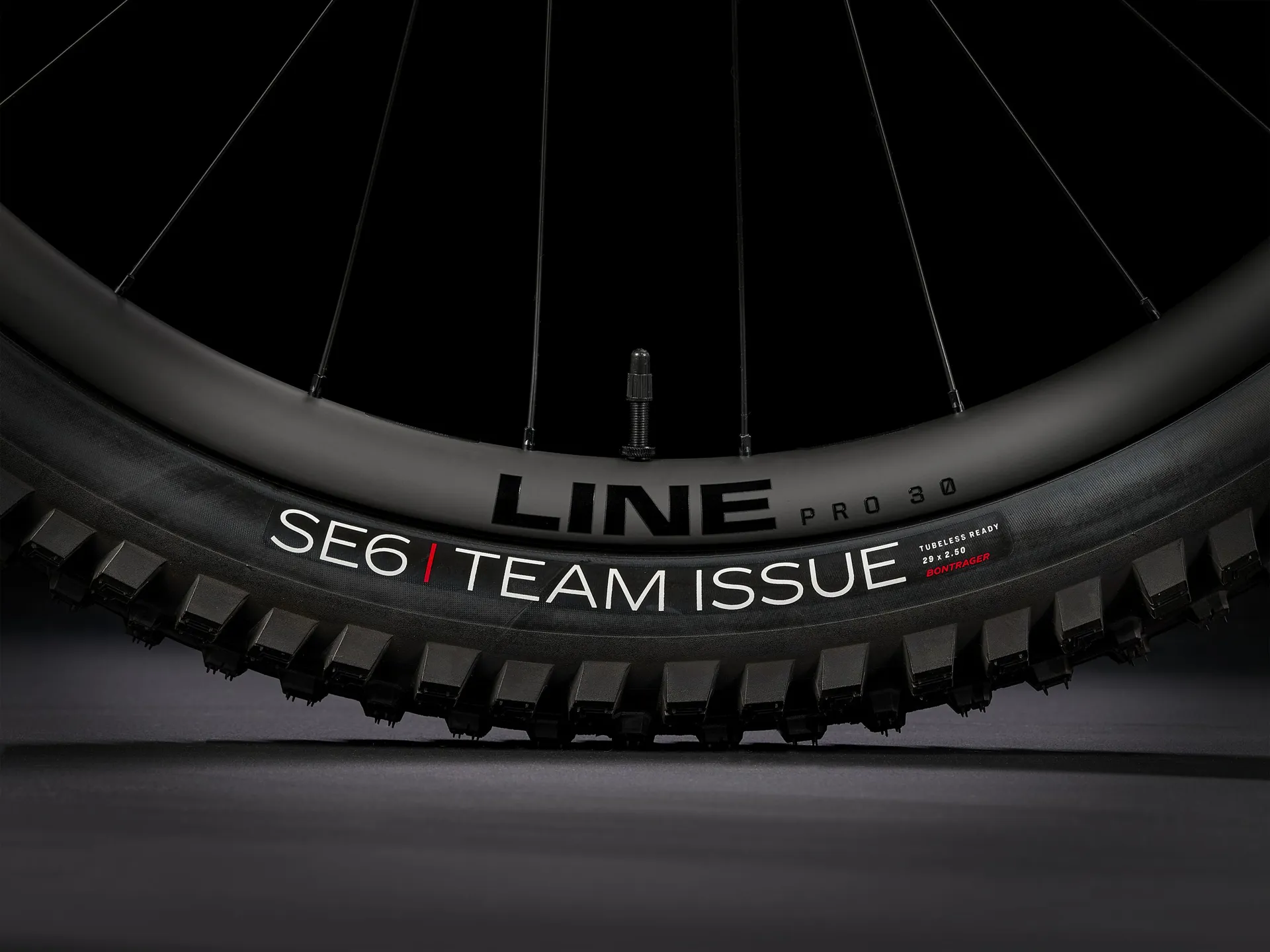

Wheels Model
Bontrager Line Pro 30, OCLV Mountain Carbon, Tubeless-Ready, 6-bolt, Boost110, 15 mm thru-axle, Bontrager Line Pro 30, OCLV Mountain Carbon, Tubeless Ready, Rapid Drive 108, 6-bolt, SRAM XD driver, Boost148, 12 mm thru-axle
